Pièces détachées pour moteur Endura 30 C2

Description

Pièces détachées pour moteur Endura 30 C2 1 2-100-285 ARMATURE ASSEMBLY 12v 3.25
2 788-015 RETAINING RING
3 2-200-188 HOUSING ASSEMBLY CENTER 3.25 TXT
4 2-300-142 BRUSH END HOUSING ASSEMBLY 3.25 SP.CO
5 2-400-187 PLAIN END HOUSING ASSEMBLY 3.25
6 880-003 SEAL
7 880-006 SEAL W/SHIELD
8 140-010 BALL BEARING
9 188-052 BRUSH ASSEMBLY [2.EA]
11 738-030 BRUSH PLATE W/HOLDER 3.25
14 975-032 SPRING-COMPRESSION [2.EA]
17 701-007 O-RING- THRU BOLT [2.EA]
18 701-039 O-RING MK406460
19 701-041 O-RING
20 830-001 SCREW- SELF THREAD 8-32X1.7 [2.EA]
21 830-062 THRU BOLT 8-32X8.0 [2.EA]
22 990-067 WASHER- STEEL THRUST
23 990-070 WASHER- NYLATRON [2.EA]
24 144-049 FLANGE BEARING (SERVICE ONLY)
25 2069275 MOTOR ASSEMBLY 12 V 3.25 5SPC TXT
26 2032045 TUBE, COMPOSITE 30”
28 1865002 – Hélice Minn Kota MKP-2
29 2151726 WASHER- 5/16 STD SS
30 2053101 NUT-PROP NYLOCK (MED) SS
31 2092600 PIN-DRIVE
*32 2061910 BRACKET
33 2060510 PIN-HINGE
*34 2061300 SCREW-CLAM [2.EA]
*35 2011710 WASHER-CLAMP SCREW [2.EA]
36 2063605 T-BAR, PLASTIC
37 2062706 SPRING- (T-BAR)
38 2067201 LEVER-TILT BLACK
39 2061810 HINGES-PLASTIC
40 2037301 BUSHING-HINGE [2.EA]
41 2062800 TENSION BLOCK-SNAP IN
42 2011385 SCREW, TENSION/KNOB
43 2060515 PIN, TILT LEVER
44 2061520 COLLAR-DEPTH
45 2011365 SCREW-COLLAR/NEW KNOB
46 2020630 LEADWIRE (14 GA) FLAG/PIGGYBACK
47 2020703 SPADE TERMINAL 14GA HD [2.EA]
48 2026300 TIE WRAP
49 2062515 CONTROL BOX
50 2060215 CONTROL BOX COVER
51 2065720 DECAL COVER ENDURA C2 30 BATTERY METER
52 2064028 SWITCH-FWD/REV 5 SP
53 2033401 SCREW-10-24 X 1-3/4
54 2013110 NUT-10-24 HEX
55 2012100 SCREW-8-18 X 5/8 [6.EA]
56 2990919 INNER HANDLE ASSEMBLY
57 2060405 PIVOT, HANDLE
58 2012102 SCREW
59 2990928 OUTER HANDLE ASSEMBLY
60 2060009 FRONT BEARING
61 2074070 BATTERY METER 12V

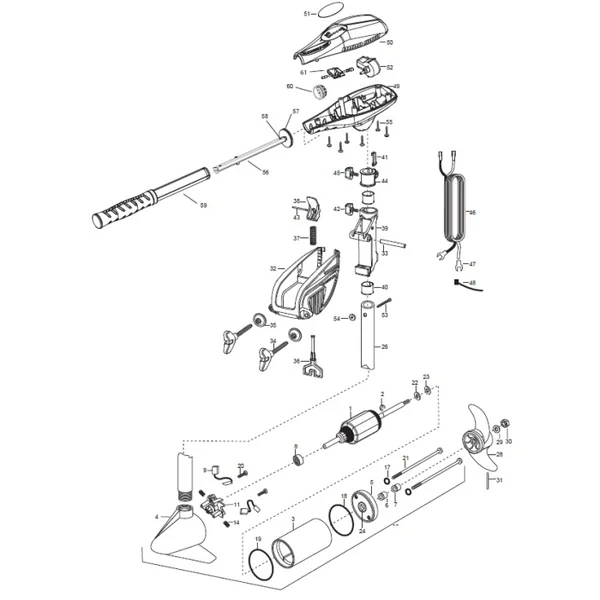

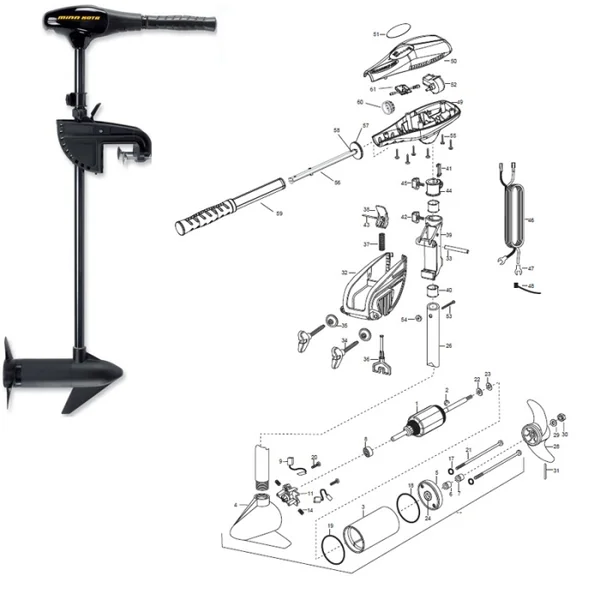

Manuel d’utilisateur Pièces détachées pour moteur Endura 30 C2 Eclaté moteur Minn Kota Endura 30 C2 (490.76 kB) Télécharger
