Description
Pièces détachées pour moteur Endura 50 C2 1 2-100-121 ARMATURE ASSEMBLY 12v 3.62
2 140-010 BEARING- BALL
3 788-015 RETAINING RING
4 2-200-101 CENTER HOUSING ASSEMBLY-
5 2-300-196 BRUSH END HOUSING ASSEMBLY 3.62 SPCO 36”
2-300-195 BRUSH END HOUSING ASSEMBLY 3.62 SPCO 42”
6 2-400-101 PLAIN END HOUSING ASSEMBLY
7 144-049 BEARING- FLANGE, SERVICE ONLY
8 880-003 SEAL
9 880-006 SEAL WITH SHIELD
10 188-036 BRUSH ASSEMBLY [2.EA]
11 725-050 BRUSH RETENTION- PAPER TUBE
12 738-036 BRUSH PLATE WITH HOLDER
13 975-040 SPRING-TORSION [2.EA]
14 337-036 GASKET
15 701-008 O-RING [2.EA]
16 701-081 O-RING
17 830-007 SCREW- # 8-32 [2.EA]
18 830-042 THRU BOLT 10-32X8.83 [2.EA]
19 990-067 WASHER- STEEL THRUST
20 990-070 WASHER- NYLATRON [2.EA]
21 2097035 MOTOR ASSEMBLY 12V 3.62 5SPC FW 36”
2097036 MOTOR ASSEMBLY 12V 3.62 5SPC FW 42”
22 2032052 TUBE COMPOSITE 36”
2032053 TUBE COMPOSITE 42”
23 Hélice Minn Kota MKP-7 (si axe moteur 9.2 cm)
23 Hélice Minn Kota MKP-6 (si axe moteur 8.3cm)
24 2151726 WASHER- 5/16 STD SS
25 2053101 NUT- NYLOC 5/16
26 2092600 PIN-DRIVE
*30 2061910 BRACKET
31 2060510 PIN-HINGE
*32 2061300 SCREW-CLAMP [2.EA]
*33 2011710 WASHER-CLAMP [2.EA]
34 2063605 T-BAR, PLASTIC
35 2062706 SPRING- T-BAR
36 2067201 LEVER- TILT BLACK
37 2061810 HINGE-PLASTIC
38 2037301 BUSHING-HING [2.EA]
39 2062800 TENSION BLOCK-SNAP IN
40 2011385 SCREW, TENSION/KNOB
41 2060515 PIN, TILT LEVER
42 2061520 COLLAR-DEPTH
43 2011365 SCREW-COLLAR/NEW KNOB
44 2020631 LEADWIRE (10 GA) FLAG/PIGGYBACK
45 2020702 SPADE TERMINAL 10GA. [2.EA]
46 2026300 TIE WRAP [2.EA]
47 2062515 CONTROL BOX
48 2060215 CONTROL BOX COVER
49 2065724 DECAL COVER ENDURA C2 50 BATTERY METER
50 2064028 SWITCH-FWD/REV 5 SP
51 2033400 SCREW-10-24 X 1-3/4
52 2013110 NUT-10-24 HEX
53 2012100 SCREW-8-18 X 5/8 [6.EA]
54 2990919 INNER HANDLE ASSEMBLY
55 2060405 PIVOT, HANDLE
56 2012102 SCREW
57 2990928 OUTER HANDLE ASSEMBLY
58 2060009 FRONT BEARING

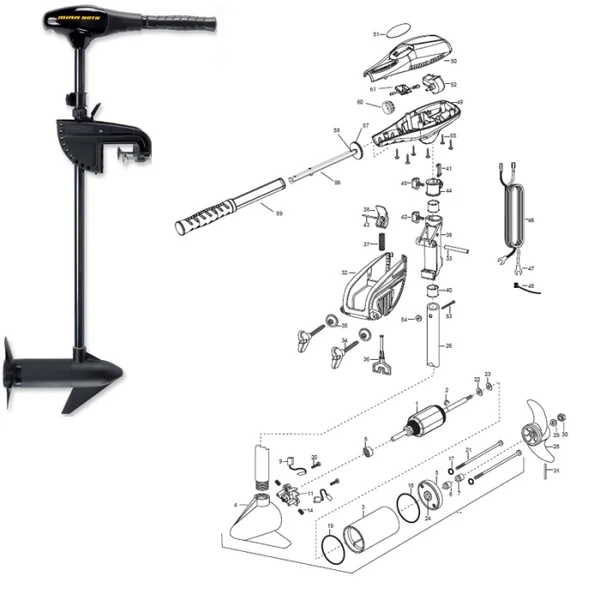

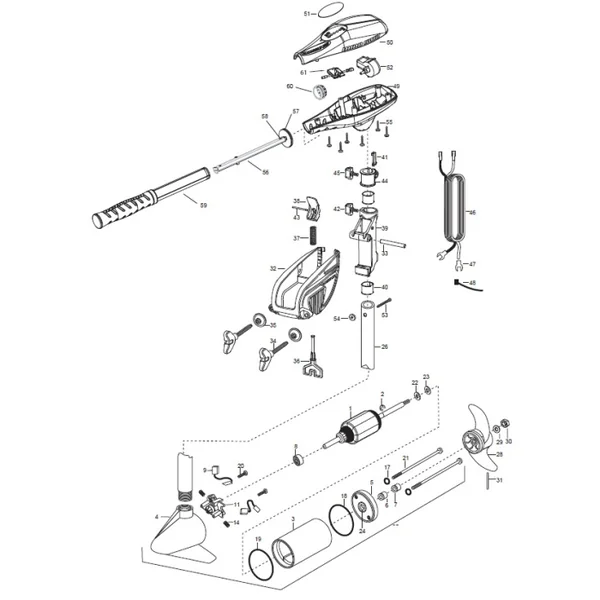

59 2074070 BATTERY METER 12V Manuel d’utilisateur Pièces détachées pour moteur Endura 50 C2 Eclaté moteur Minn Kota Endura 50 C2 (481.48 kB) Télécharger
